密閉音腔

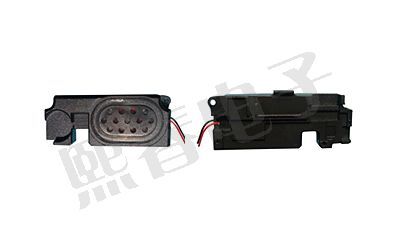

Product Model:KFS2415SB-S-8135

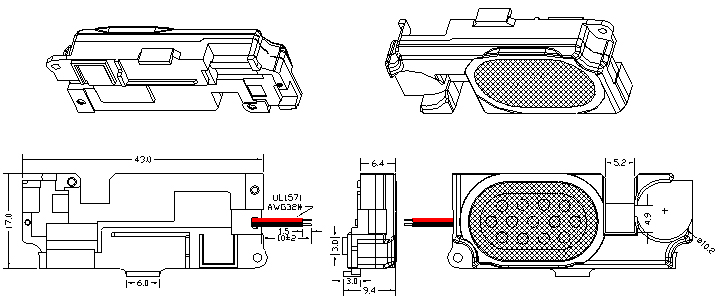

Mechanical Layout & Dimensions: Unless otherwise specified,tolerance: ±0.2 (unit: mm)

Electrical Specifications:

Typical Frequency Response Curve:

1	Rated Sine Power	0.8W. Max.(Short-term):1.0W
2	Frequency Range	1500±20% Hz @ 1V(without baffler)
3	Resonance frequency	f0 Hz ～ 20KHz
4	Impedance	8±15%?(@ 2KHz 1V without baffler)
5	DC Resistance	7.4±15%?
6	Sensitivity	93±3dB SPL at 0.8k 1k 1.2k 1.5kHz @ 0.5w(2.0V) / 0.1m

Changzhou Xichun Electronics Co., Ltd Design by:Zhonghuan Internet
