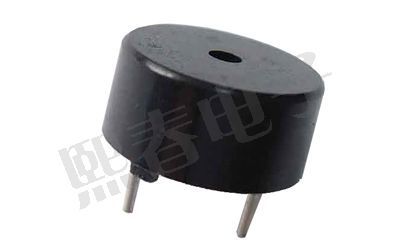

Piezoelectric/ceramic Buzzer(Passive)
Product Model:XCPT13A

Mechanical Layout & Dimensions:                                             Typical Frequency Response Curve:


Unless otherwise specified,tolerance: ±0.2 (unit: mm)

Electrical Specifications:

TYPE UNIT XCPT13A4003P
◆Min. Sound Output at 10cm dB 70
  Rated Voltage V0-p 3
  Operating Voltage  V0-p 1~30
  Resonant Frequency Hz 4000±500
◆Max. Current Consumption mA 2
  Capacitance  pF 12000±30%
  Operating Temperature -20℃ ~ +70℃
  Storage Temperature -20℃ ~ +80℃
  Weight g 1
