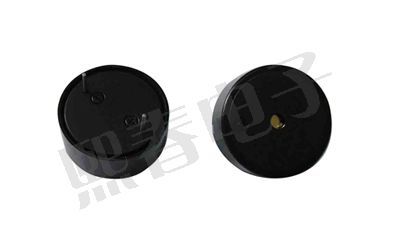

Piezoelectric/ceramic Buzzer（Active）
Product Model:XCPS23A
Mechanical Layout & Dimensions: Typical Frequency Response Curve:
Unless otherwise specified,tolerance: ±0.2 (unit: mm)
Electrical Specifications:
| TYPE | UNIT | XCPS23A3512P | XCPT23A3524P |
| ◆Min. Sound Output at 10cm | dB | 85 | 85 |
| Rated Voltage | V0-p | 12 | 24 |
| Operating Voltage | V0-p | 3～24 | 12～36 |
| Resonant Frequency | Hz | 3500±500 | |
| ◆Max. Current Consumption | mA | 12 | |
| Tone Nature | Continuous | ||
| Operating Temperature | ℃ | -20℃ ~ +60℃ | |
| Storage Temperature | ℃ | -20℃ ~ +70℃ | |
| Weight | g | 4 | |
